Description
The Bastille is wrapped in solid matt and wood effect vinyl finishes with micro texture for extra durability. The base door material is MDF core and the edge is 1mm radius.
Six year warranty.
Bastille Kitchen Doors between 283mm – 2400m high are supplied 5 piece as standard. The centre panel grain direction will always be vertical. Doors below 246mm width are a single wrapped profile only.
Bastille Kitchen Drawers between 100-215mm are supplied as single piece flat panels. The standard drawer heights are 115, 140, 175 and 215mm high, made to measure drawers are cut from the next nearest profile size and bottom cut and edged. Drawers are supplied with horizontal grain.
Pan drawers are between 283mm – 355mm and are supplied as five piece.
Bastille Door Construction

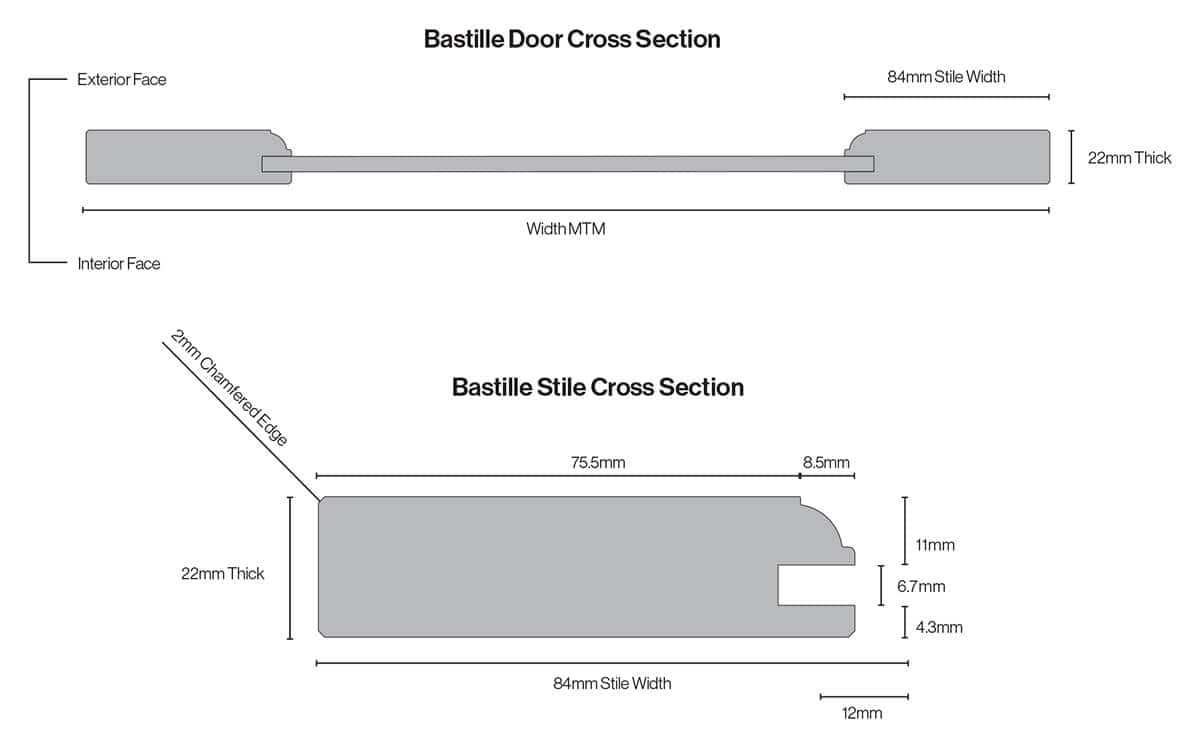

Below is a technical drawing of how the Bastille door is constructed. It can be seen how the five pieces slot together to make the door.
