Description

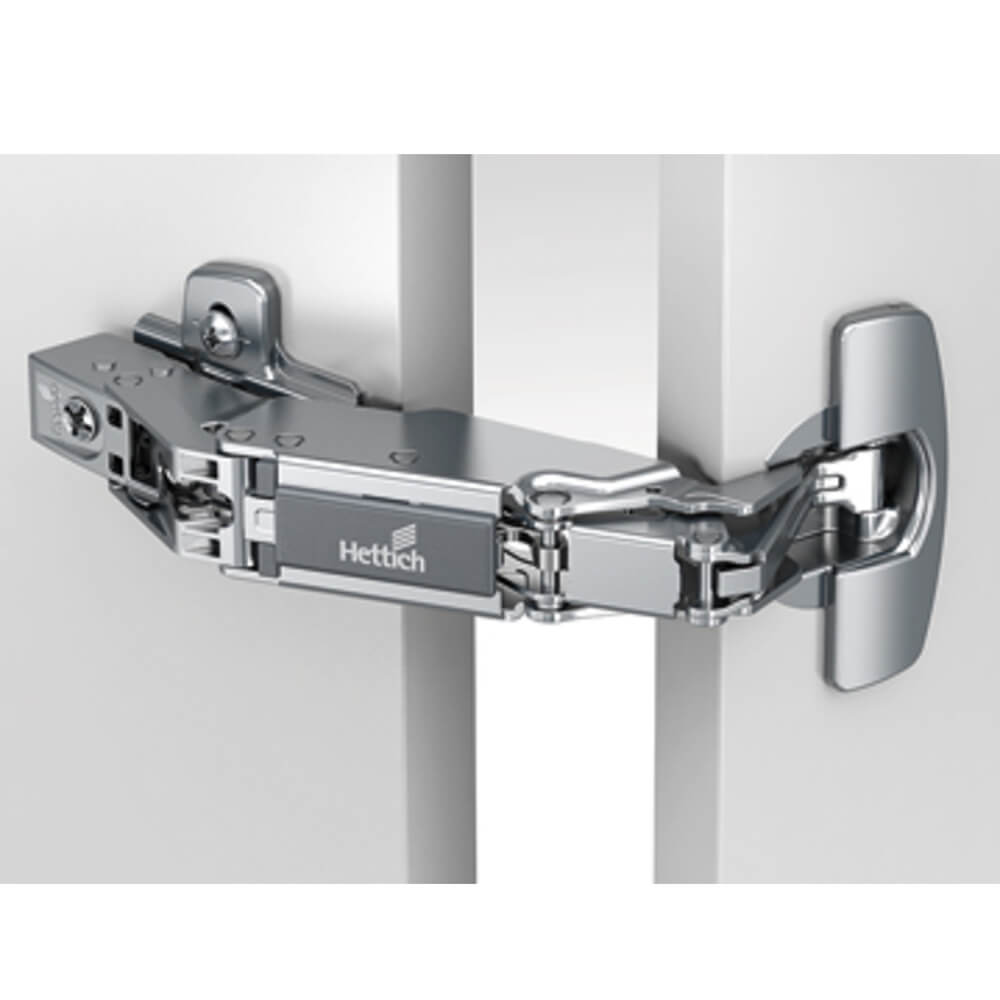

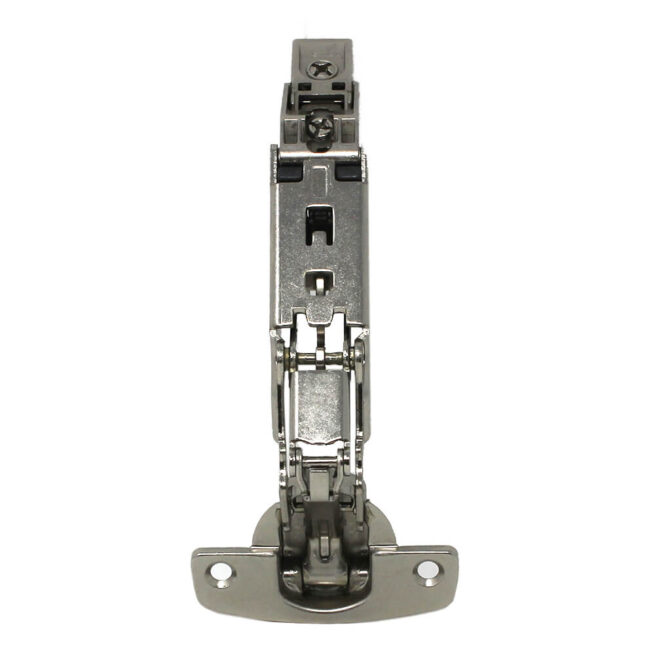

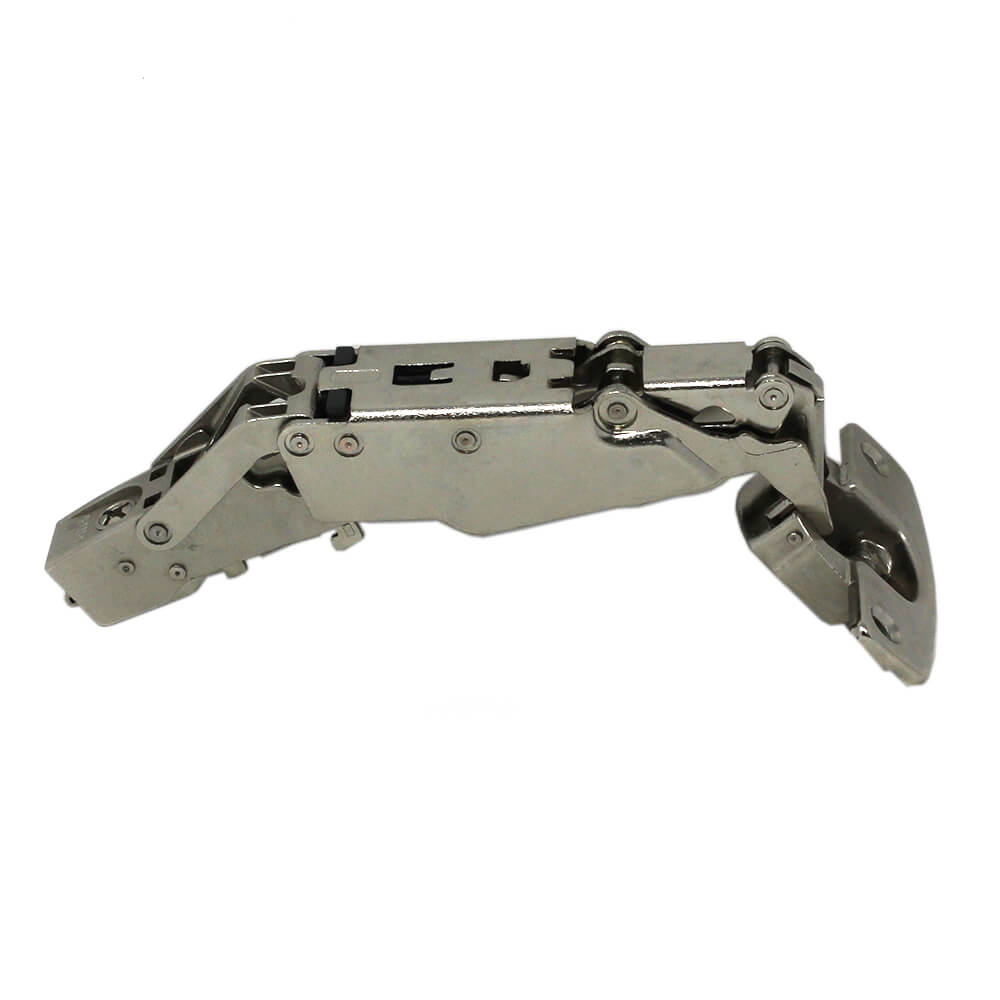

- Concealed hinge with clip on installation and integrated Silent System
- Quality classification under EN 15570, Level 3
- For door thickness of 15 – 32 mm

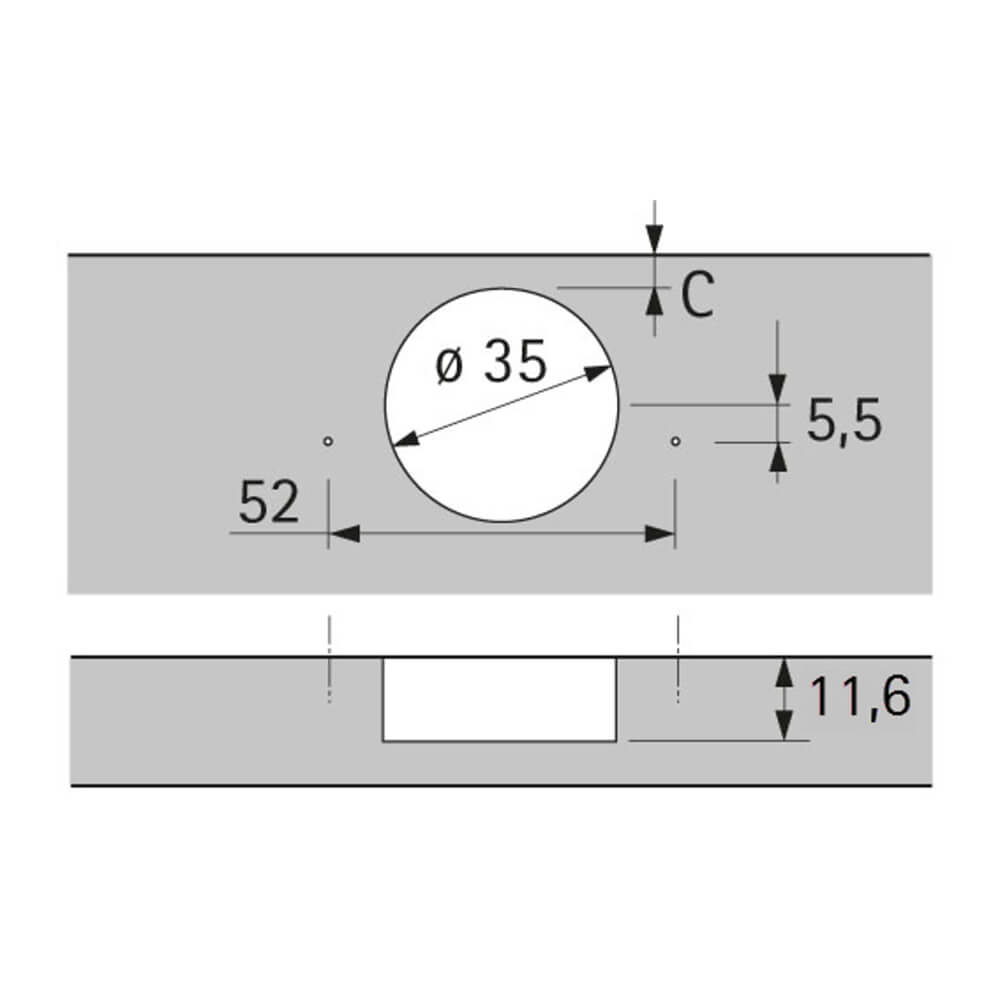

- Cup diameter 35 mm
- Cup depth 11.6 mm
- Integrated + 2 mm / – 2 mm overlay adjustment
- Integrated depth adjustment + 3 mm / – 2 mm
- Height adjustment at mounting plate
- Opening angle can be reduced by means of optional accessory

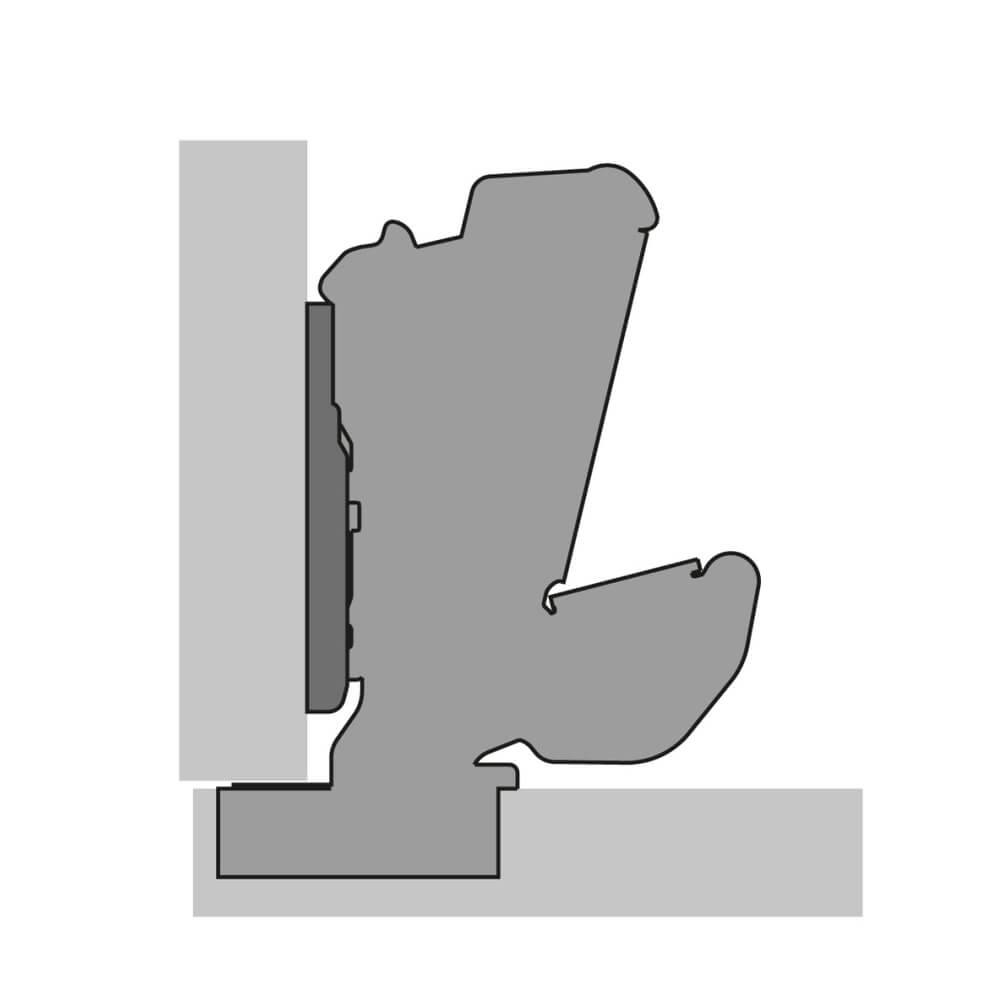

- Zero protrusion hinge
- Hinge arm material: steel, nickel plated / nickel plated die-cast zinc
- Hinge cup material: steel, nickel plated
