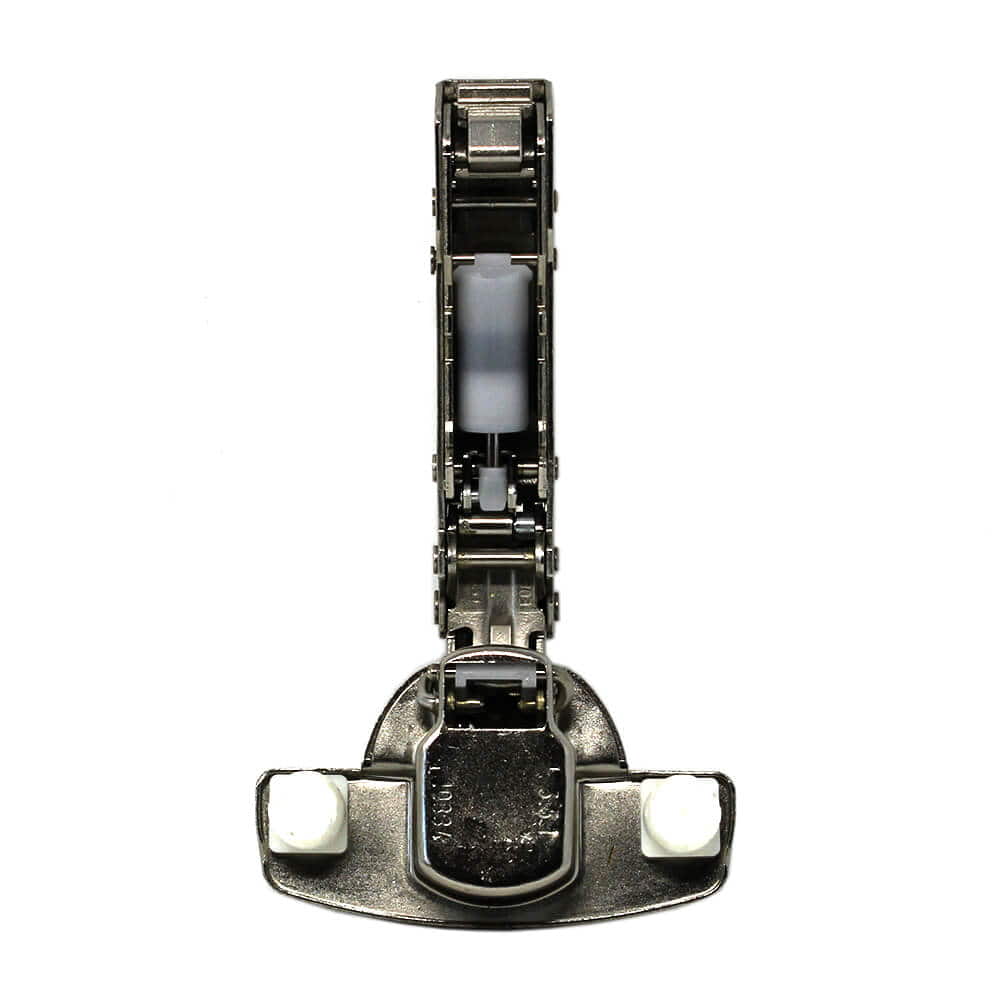

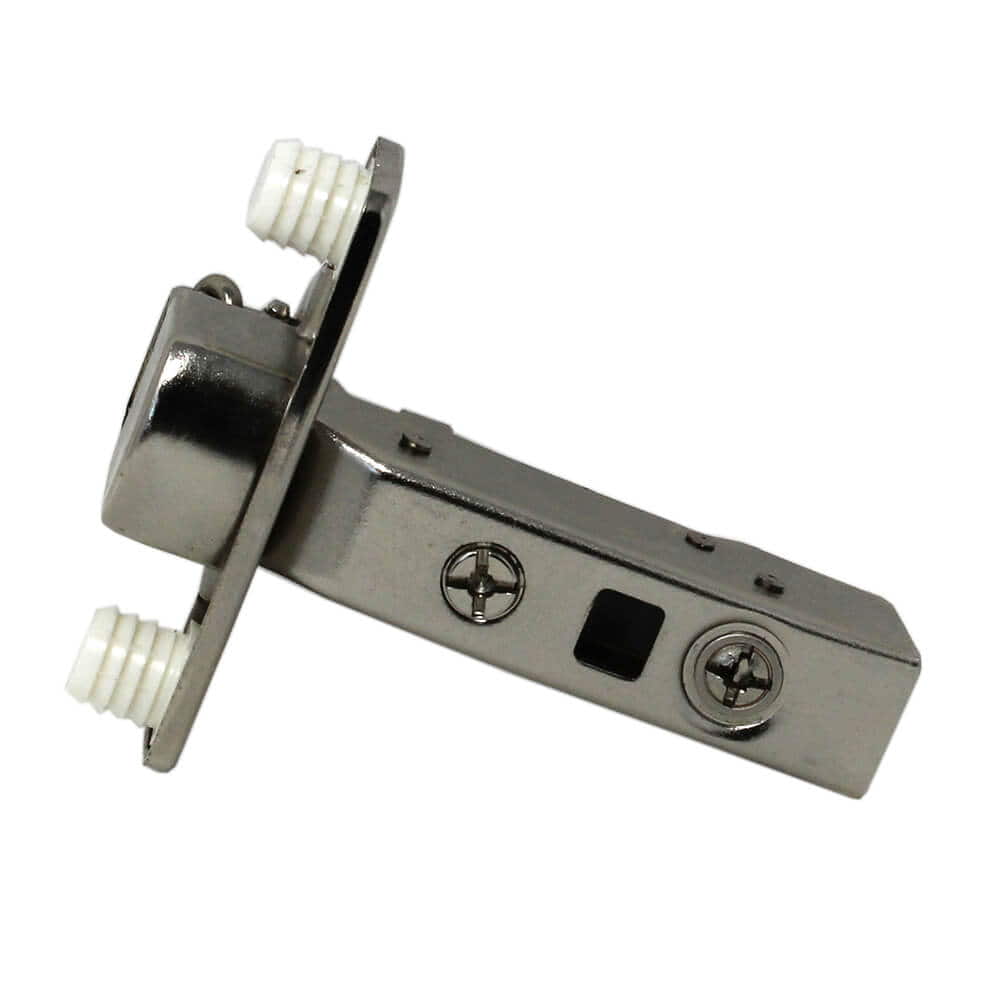

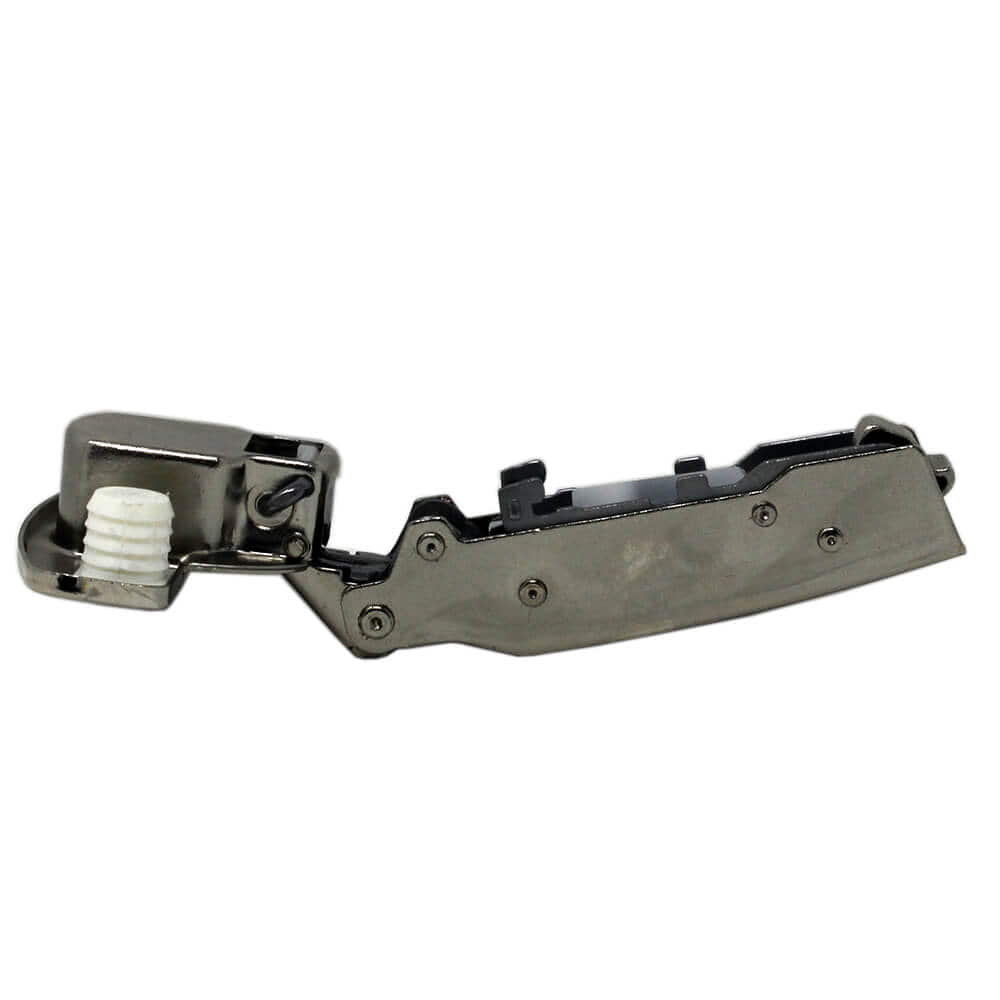

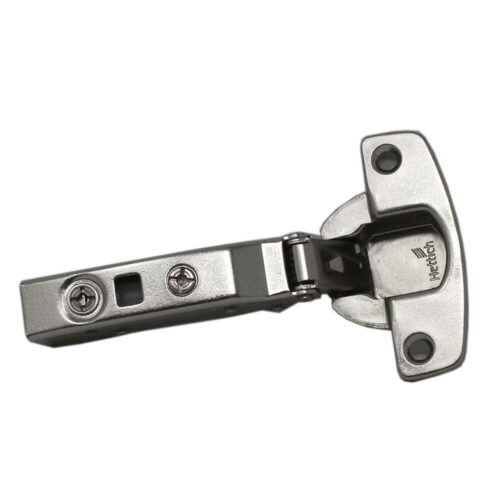

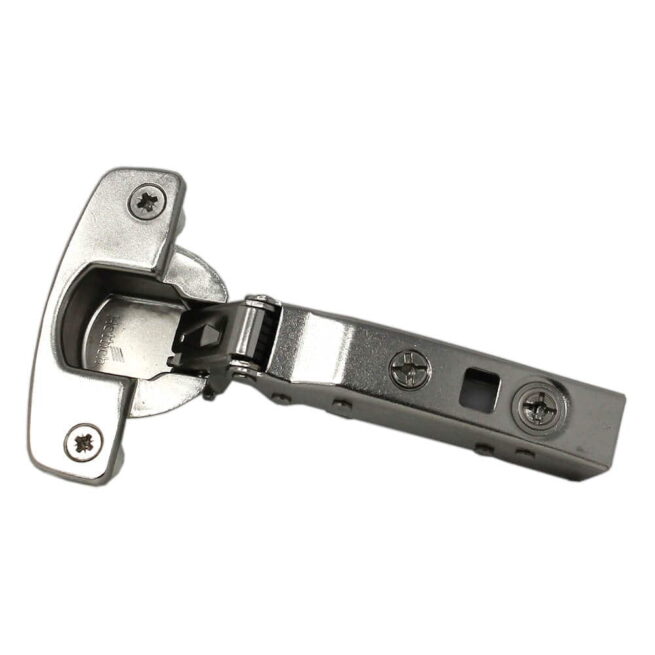

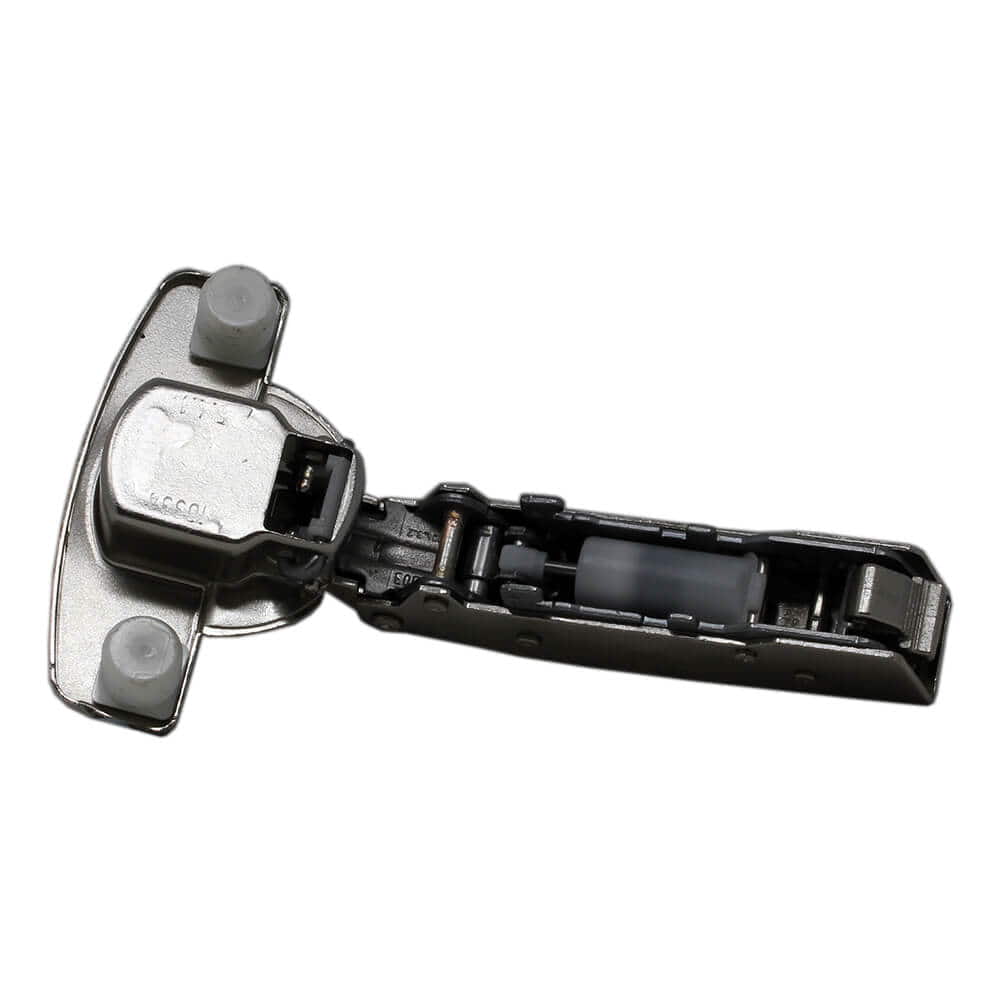

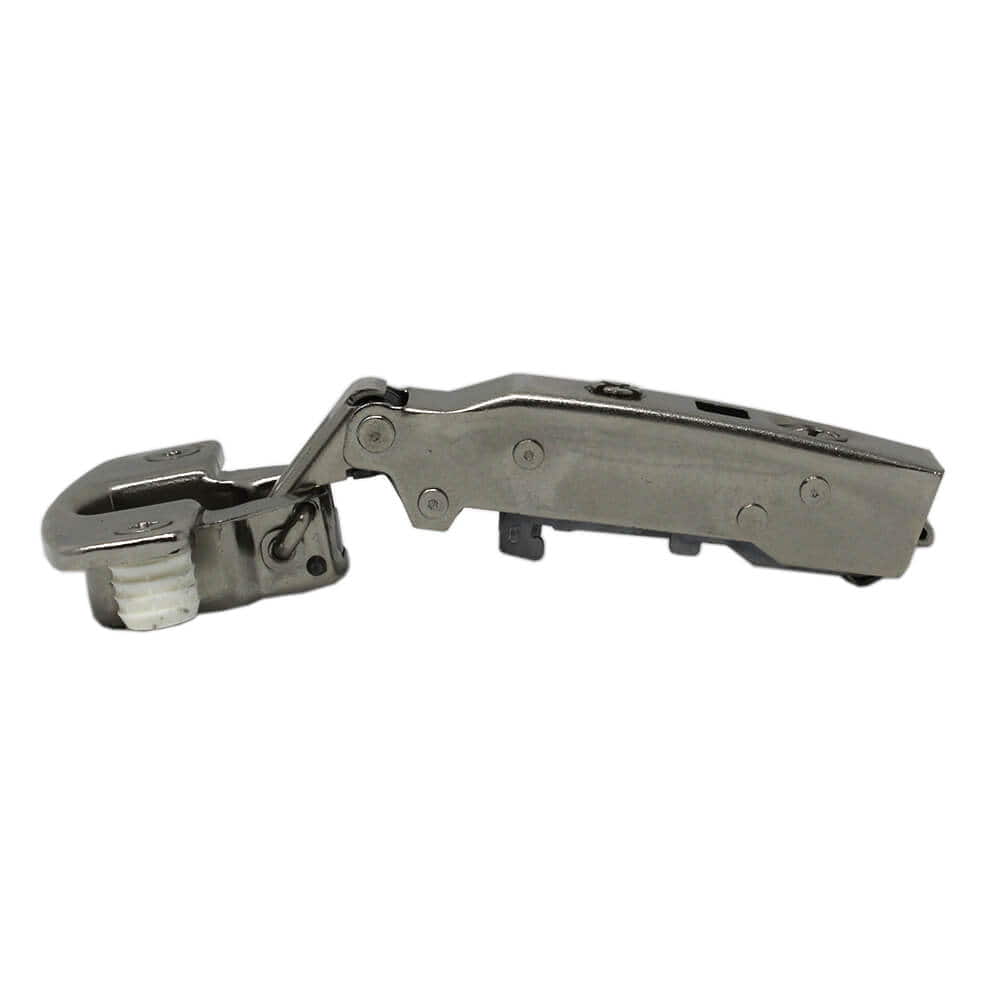

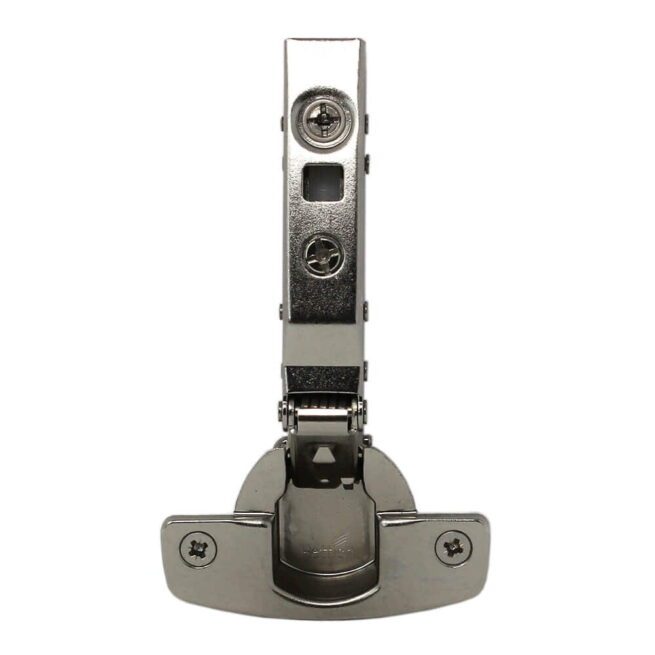

Hettich 9073608 Sensys 110 Hinge 52 x 5.5

Description

• Sensys 110° hinge
• With integrated Silent System, with self closing feature (Sensys 8645i)
• Quality classification under EN 15570, Level 3
• Opening angle 110 °
• For door thickness 15 – 24 mm
• Door mounting option overlay

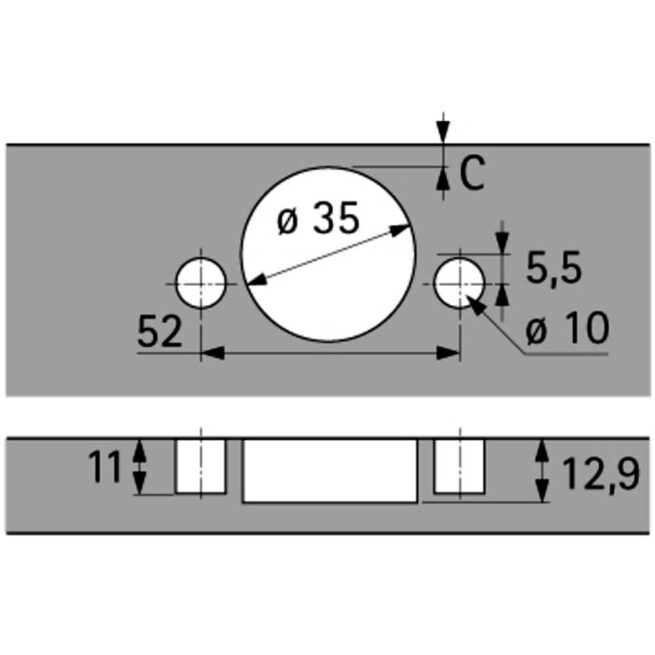

• Drilling pattern TH 52 x 5,5 mm
• Cup depth 12.8 mm
• Installation For pressing in
• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• Steel nickel plated

We stock a full range of the most common Hettich Hinges at our showroom in Chenies. Please contact us if you are not sure which you require.
