Description

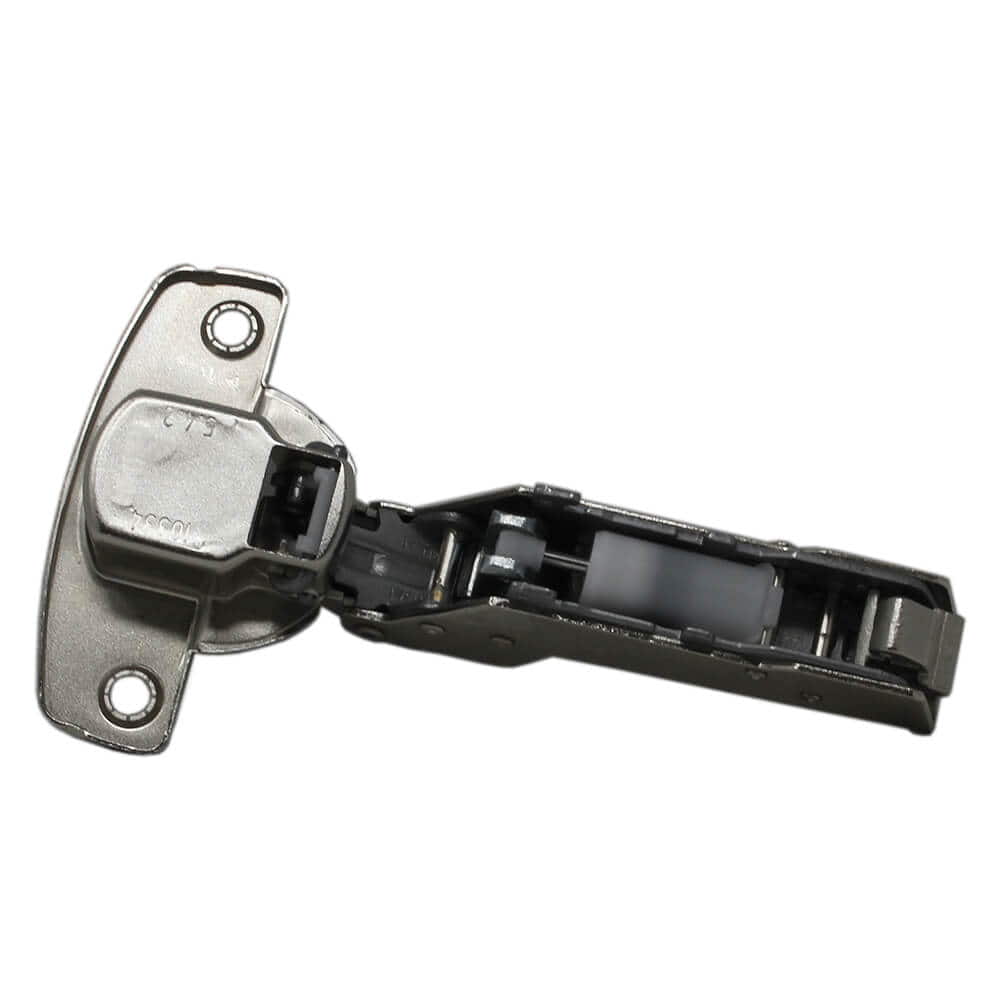

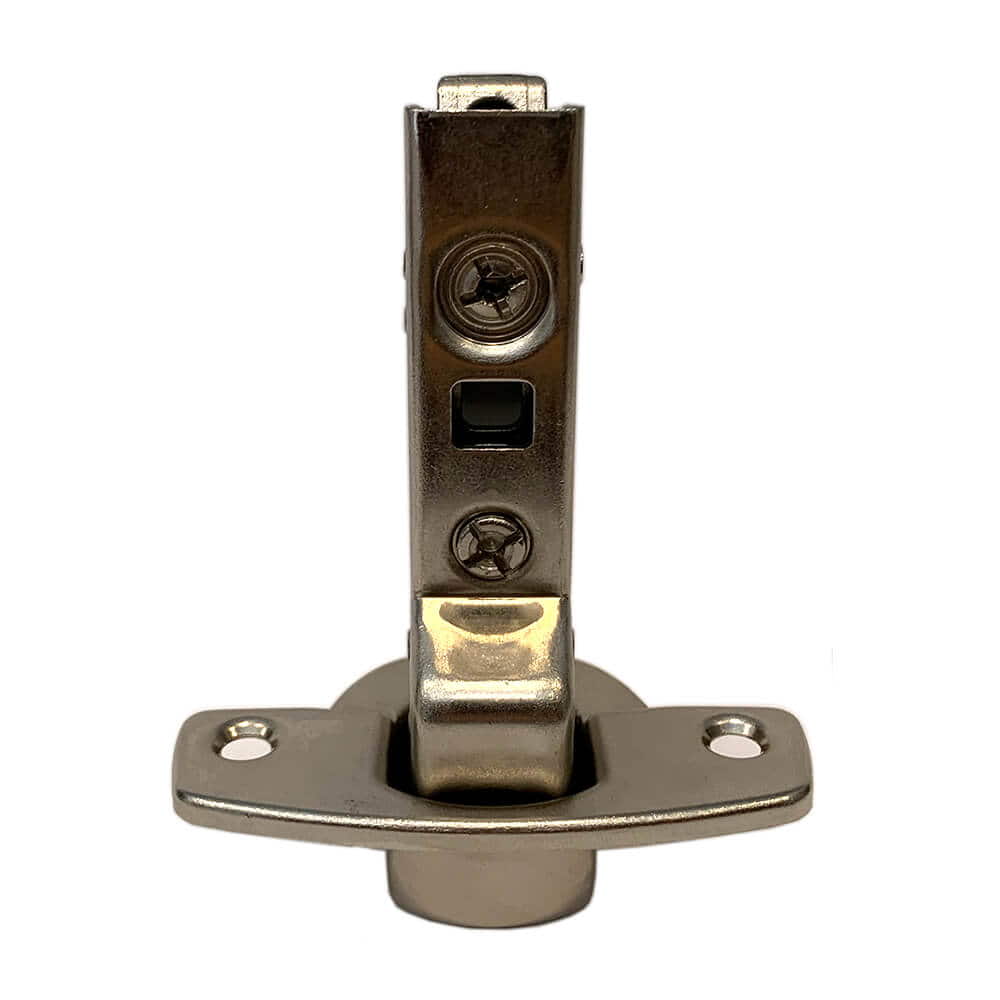

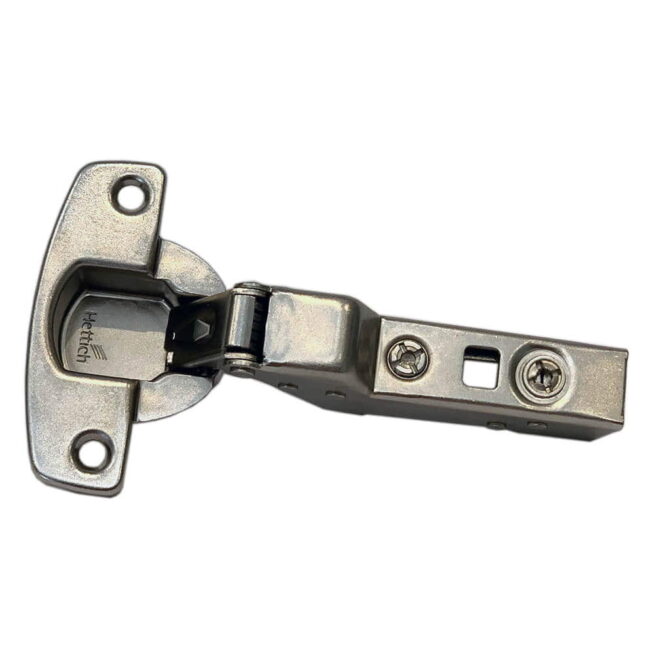

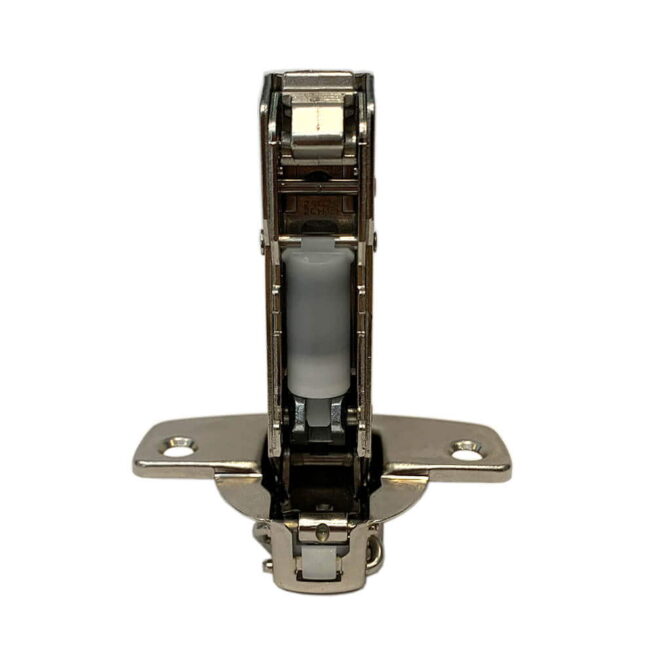

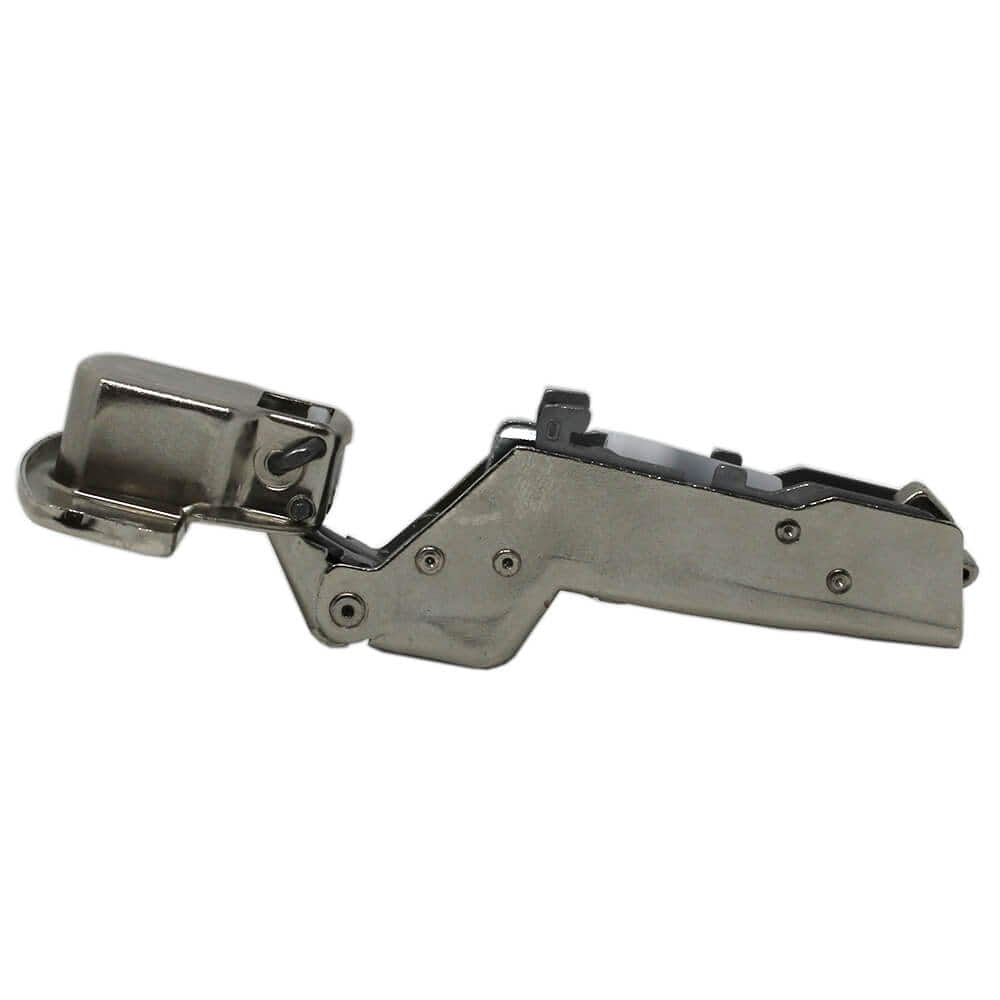

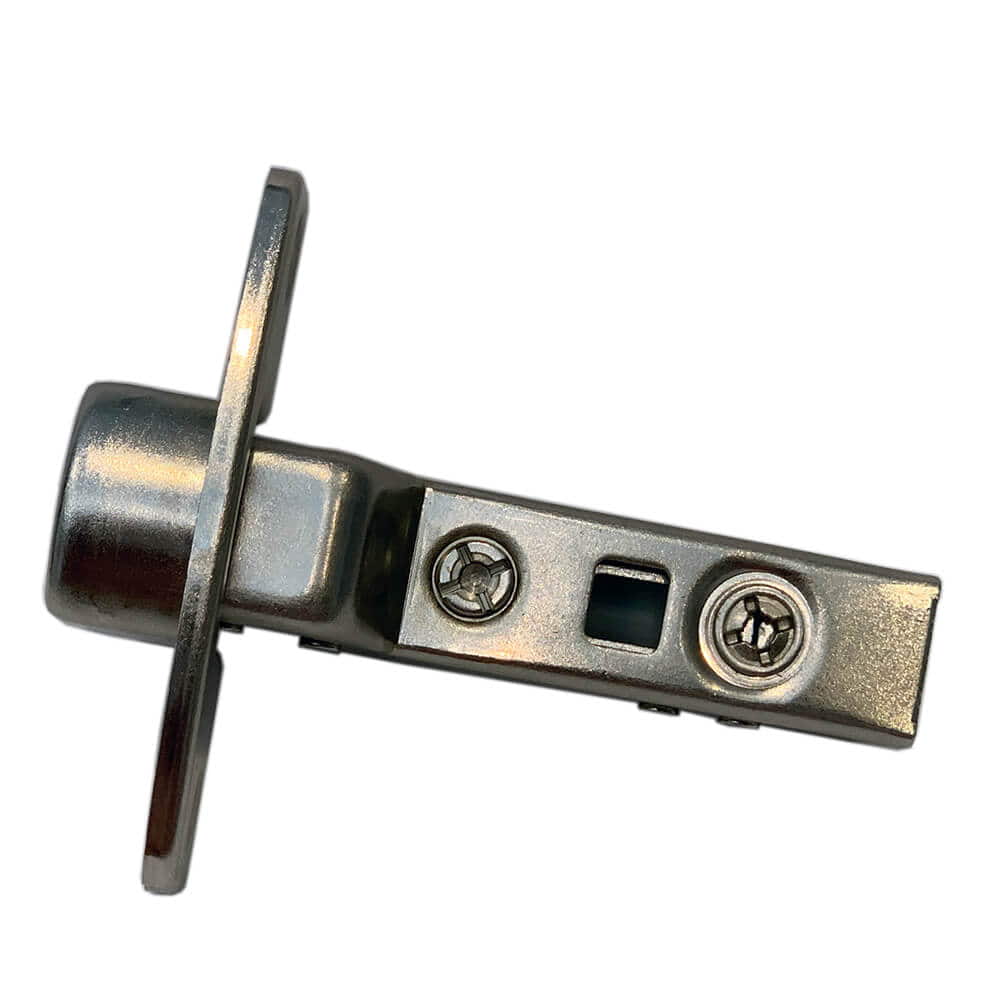

- Sensys 110° hinge
- Integrated Silent System, with self closing feature (Sensys 8645i)
- Quality classification under EN 15570, Level 3
- Opening angle 110°
- For door thickness 15 – 24 mm
- Door mounting option inset

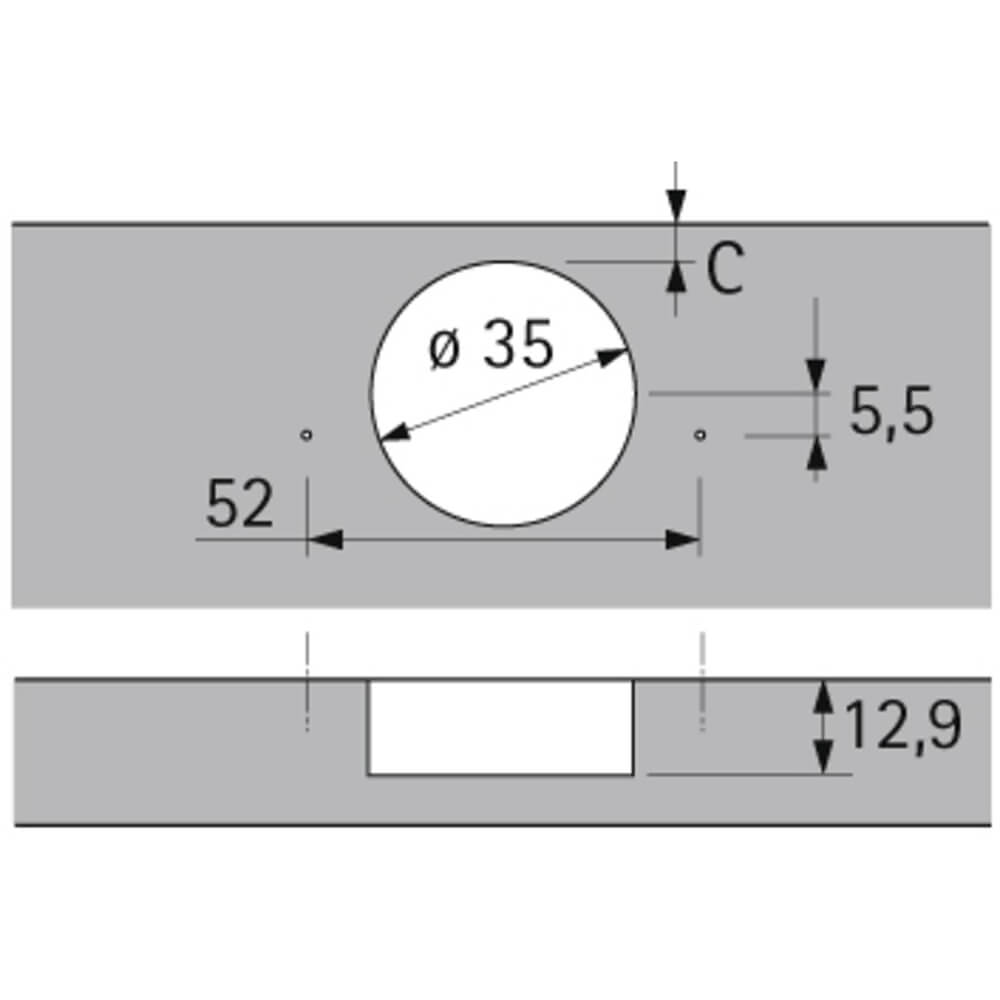

- Drilling pattern TH 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- Steel nickel plated
Technical Specifications
| Design | 90° construction |
| Door type | Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm) |
| User friendly features | with integrated Silent System |
| Door mounting option | inset |
| Opening angle | 110 ° |
| Min. door thickness | 15 mm |
| Max. door thickness | 24 mm |
| Cup version | TH 52 |
| Base | -4 mm |
| Cup diameter | 35 mm |
| Typ of installation | for screwing on |
| Cup depth | 12.8 mm |
| Hinge surface finish | Steel nickel plated |
| Drilling pattern | TH 52 x 5,5 mm |
| Diameter of mounting hole | Centre punch Predrilled hole 2.5 mm Ø max. |
| Integrated overlay adjustment | +2 mm / -2 mm |
| Integrated depth adjustment | +3 mm / -2 mm |
| Mounting hole | – |
| Stay closed function | Yes |
| Finish | nickel plated |
We stock a full range of the most common Hettich Hinges at our showroom in Chenies. Please contact us if you are not sure which you require.
